Features:Ideal for 1/10 drift car applicationsIncredible efficiency and low power consumptionTitanium & Steel gears for precision and durabilityStandard dimension make it perfect for vehicles that can benefit from a high quality servo CNC Machined aluminum case for exceptional coolingSSR mode compatible2 μsec Dead BandSuperior Holding TorqueSpecifications:TypeDigitalBearingDualMotor TypeCorelessGear TypeMetalGear MaterialTitanium & SteelControl SystemPulse Width ControlWorking Frequence1520μs / 330hzOperating VoltageDC 6.0-8.4VOperating Temperature Range-10 to + 60 degreeOperating Speed(6.0v): 0.10 sec/60 degrees at no load
(7.4v): 0.095 sec/60 degrees at no load
(8.4v): 0.08 sec/60 degrees at no loadStall Torque(6.0v): 14.0kg.cm (194.4 oz/in)
(7.4v): 16.5kg.cm (229.1 oz/in)

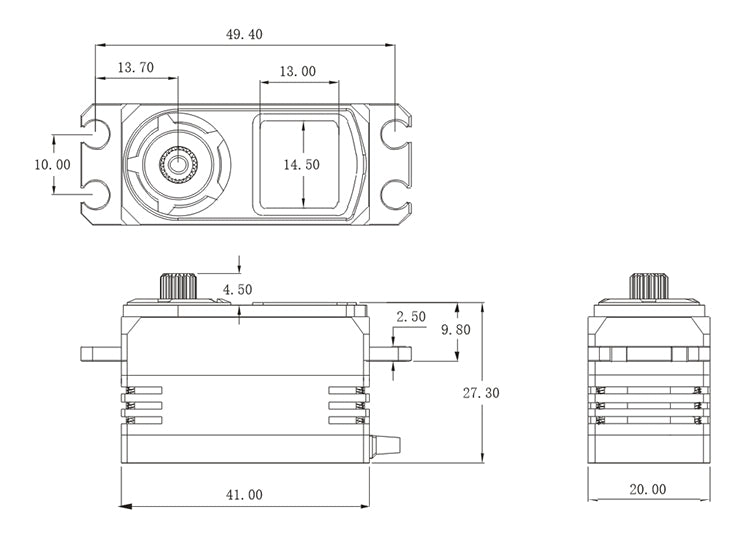

(8.4v): 18.5kg.cm (256.9 oz/in)Potentiometer DriveDirect DriveDimensions41.0 x 20.0 x 27.3 mmWeight58.0gConnector Wire LengthJR 80mm
