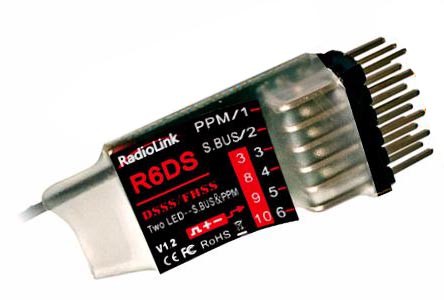

R6DS 2.4Ghz 6-Ch (10-Channels under PPM) Receiver (DSSS + FHSS)

R6D can output PPM,PWM and S-BUS, powered with DSSS and FHSS frequency-hopping technology and signal strength telemetry, is compatible with the transmitters AT9, AT9S and AT10.

 Three operating modes output:

•  1) PWM output: Red LED indicates PWM mode, 6 channels totally.
•  2) PPM output: Blue LED for PPM, CH1 output PPM signal, and channel 2 to channel 6 output independent PWM signal simultaneously(2 to 6 row pin output CH5 to CH10 PWM signal), 10 channels totally.
• 3) S-BUS output: CH2 is output S-BUS signal
