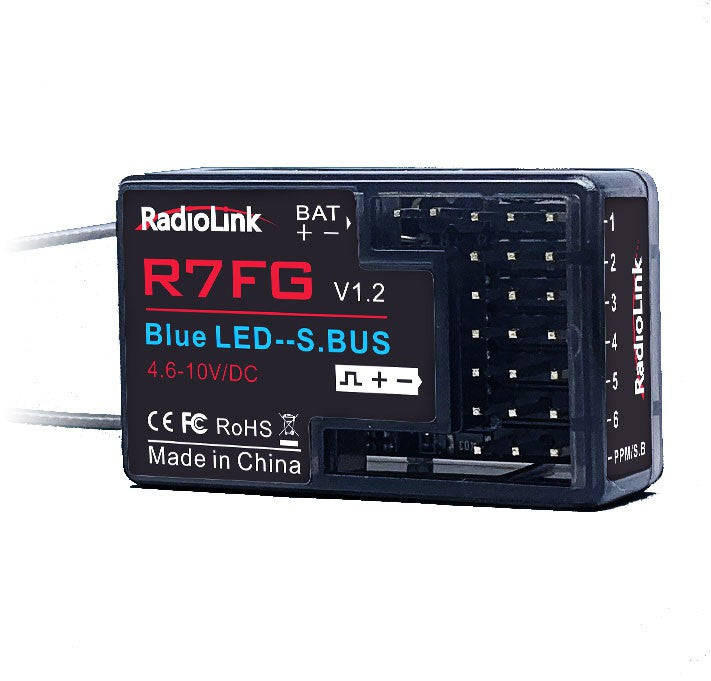

R7FG 2.4Ghz 7Ch gyro integrated Receiver for RC4GS, RC6GS, T8FB & T8S

Return Real-time Model Battery Voltage

Capable of real-time transmission of RSSI, receiver/model battery voltage. The RSSI value and receiver voltage will be displayed once the binding complété between transmitter and receiver.Model voltage can be displayed by connecting the battery to BAT (positive/negative pins) without extra backhaul module needed while the real-time maximum voltage can be up to 6S battery.To support the two-way transmission function, the corresponding latest firmware needs to be flashed

Subsidiary ID

Capable of designating a subsidiary ID among multiple binding receivers to meet spécial need such as long-distance rescue with model cars/boats.There can be totally 10 subsidiary ID stored.

FPV with 600m Control Distance

Stable control distance up to 600 meters on the ground. Control with caméra and display screen/
goggle make the FPV fun and cool.

FHSS Hopping Communication, Anti-Interference
FHSS spread spectrum algorithm and 67-channel pseudo random frequency hopping make excellent anti-interference performance, perfect for multiplayers compete synchronousIy.The Tl CC2500 chip makes better protection from fuel engine spark and ensures the safety of enjoying fuel-powered model cars.

SBUS/PPM/PWM Signal Supported
CHl to CH6 are with PWM signal output while CH7 with PPM or SBUS signal output.
Players can personalize signal output mode to fully enjoy the fun of model nest boat and car with FPV.

Integrated Gyro

The Integrated gyro of high performance adopts the software filter and PID algorithm, timely and precisely corrects the sensitivity and improve the stability. Its good flexibility to different models and fields easily achieves professional performance even with drift cars.

4096 Précision, 12ms Fast Response

The channel resolution is 4096, the regular jitter is 0.5us, the low drop-out rate and the high-speed processor of 48MHz MO ensure the extreme fast response within 12ms.

Anti-polarity Connect Protection, Power by Wide Voltage

Even the polarities are mistakenly connected,
receiver won’t get damaged.The power of 4.6-10V wide voltage supports high voltage servo.
