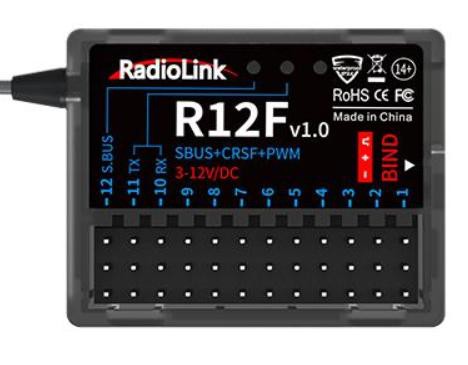

R12F

12 Channels Receiver

Cutting-edge Communication Technology

4000 Meters Control Distance

FHSS spread spectrum algorithm and 67-channel pseudo-random frequency hopping make excellent anti-interference performance, perfect for multiplayer complete synchronously, and helps protect from fuel engine spark and ensures the safety of enjoying fuel-powered model cars.
600 meters stable offshore control distance and 4000 meters air control distance.

PWM, SBUS, and CRSF Signal-supported

• PWM working mode: Red LED always on indicates PWM signal output, 12 channels total.
• PWM+SBUS working mode: Blue and red LED always on indicates PWM+SBUS signals output.

CH1 to CH11 is with PWM signal output while CH12 is with SBUS signal output.

Users can personalize signal output mode to fully enjoy the fun of a model bait boat or car with FPV.

• PWM+CRSF+SBUS working mode: Blue, green, and red LED always on indicates PWM+CRSF+SBUS signals output.
• CH1 to CH9 outputs the PWM signal, CH10 to CH11 outputs the CRSF protocol, and CH12 outputs the SBUS signal.
• CRSF+PWM working mode: Green and red LED always on indicates PWM+CRSF signals output.
• CH1 to CH9, and CH12 outputs the PWM signal, CH10 to CH11 outputs the CRSF protocol.

Anti-polarity Connect Protection, Power by Wide Voltage

Even if the polarities are mistakenly connected, the receiver will not get damaged.
The power of 3-12V supports high voltage servo.

Subsidiary ID

Rescue, Towing, Parent-child Entertainment, and Friend Teaching in One Control
Capable of designating a subsidiary ID among multiple binding receivers to meet special needs such as long-distance rescue with model cars/boats.
Example of the use of the Subsidiary ID ①: Ship No. 1 is parked in the middle of the lake due to insufficient engine battery voltage.
At this time, ship No. 2 can be switched to tow to rescue.
Example of the use of the Subsidiary ID Mode ②: After the No. 1 trailer consigns the No. 2 vehicle to the designated address. Switch the Subsidiary ID number of the remote control from No. 1 to No. 2 to control the No. 2 car, and let the No. 2 car reverse from the trailer.

Receiver Supports Upgrade Online

With a Type-C cable (for data transmission) connecting the R12F to the computer, the latest cutting-edge functions can be easily added without any extra device.

Full Models with Full Functions

R12F, with 12 channels output, is compatible with helicopters, fixed-wing, gliders, multi-rotors, engineering vehicles, racing boats, robots, lawnmowers, bait boats, mechas, and other models on the market.

Multiple Transmitter Compatible

R12F is compatible with RadioLink T series aircraft transmitters and all the surface transmitters.
T series aircraft transmitters: 16 fully-proportional channels transmitter T16D, 12 fully-proportional channels transmitter T12D,
8 channels transmitter T8FB(BT), T8S(BT), T8FB(OTG), and T8S(OTG).
All the surface transmitters: 8 channels transmitter RC8X, 7 channels transmitter RC6GS V3, 5 channels transmitter RC4GS V3, 6 channels transmitter RC6GS V2, RC6GS, and 4 channels transmitter RC4GS V2, RC4GS.
