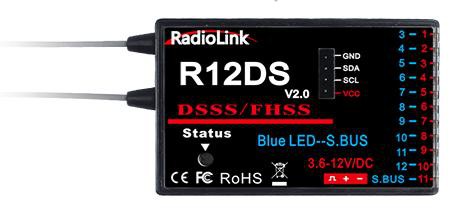

R12DS 2.4Ghz 12-Ch Receiver (DSSS + FHSS)

4000 Meters Control Distance
DSSS* and FHSS* hybrid spread spectrum, 16 channels pseudo-random frequency hopping, and QPSK* modulation ensures excellent anti-interference performance, highly constant, and stable transmission signal present on all 12 channels of R12DS.
4KM (2.5 Miles) * Range enables all possible RC fun.
The maximum PWM jitter is 1.84us with a standard of just 0.5us.

* Direct Sequence Spread Spectrum transmissions multiply the data by a "noise" signal. This noise signal is a pseudorandom sequence of 1 and -1 at a frequency higher than that of the original signal.
* Frequency Hopping Spread Spectrum offers three main advantages: signals are highly resistant to narrowband interference, are difficult to intercept and can share a frequency band with many types of conventional transmissions with minimal interference.
* Maximum range is tested in an unobstructed area free of interference.

SBUS and PWM Signals Output

• 12 channels. Detachable antennas.
• SBUS and PWM can operate simultaneously for seamless user control.
• Adaptable models include Rotary Wing, Fixed Wing, Glider, Multicopter, Car, Boat and Robot.
• Compatible with PIXHWAK, MINI PIX, TURBO PIX, APM, Byme-A and Byme-D flight controllers which support SBUS or PPM signal.

Real-time Telemetry

• Real-time model data allows users to receive crucial information on the model's systems.
• When paired with flight module PRM-01, model voltage is displayed.
