Hobbywing

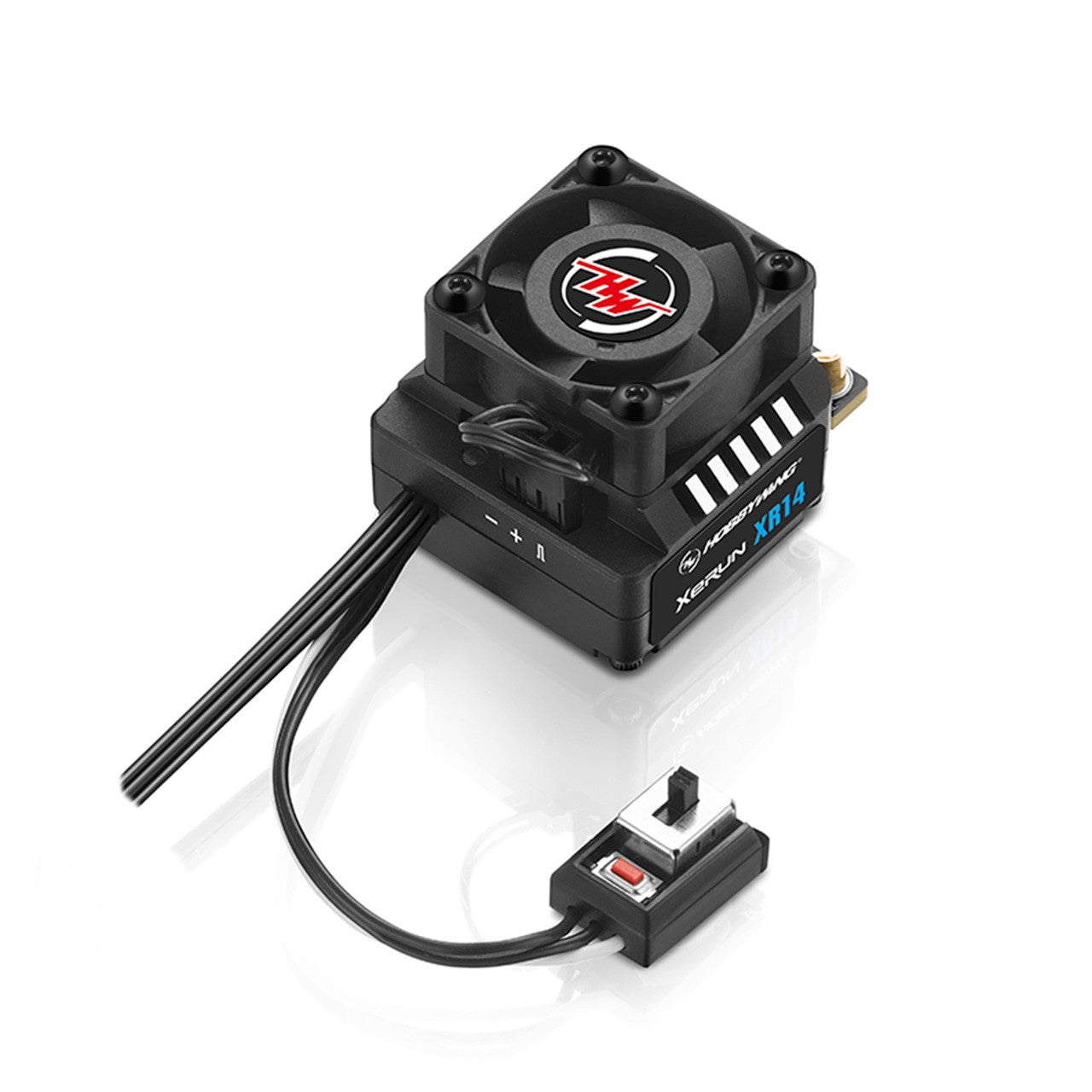

Xerun XR14 Brushless Regler 70A 2s LiPo
Xerun XR14 Brushless Regler 70A 2s LiPo
Prix habituel
€102,99 EUR
Prix habituel
Prix promotionnel
€102,99 EUR
Taxes incluses.
Frais d'expédition calculés à l'étape de paiement.
Quantité
Impossible de charger la disponibilité du service de retrait
XeRun XR14
Built for Competition
An all-round competition-grade ESC, meticulously designed with advanced software to deliver peak performance for both 1/14th on-road and off-road vehicles.
High power output, excellent cooling
- The maximum continuous output current of the ESC is as high as 70A
- The full-metal heat sink top ensures efficient heat dissipation, keeping the ESC within safe operating temperature, even during intense use.
Built-in reverse polarity protection circuit
Built-in reverse polarity protection prevents damage from incorrect battery connection, safeguarding your ESC from potential issues caused by reverse battery polarity.
Note: The reverse polarity protection of the entire power system can be achieved only by using the non-polarity capacitor sold as an option.
The standard capacitor of the ESC does not have this protection. Reverse connection of the battery will damage the capacitor, but the ESC should not be damaged. Replacement of the capacitor is needed immediately.
The standard capacitor of the ESC does not have this protection. Reverse connection of the battery will damage the capacitor, but the ESC should not be damaged. Replacement of the capacitor is needed immediately.
High-Voltage Servo Support with Built-in BEC
- Equipped with a built-in switch mode BEC.
- A maximum continuous current of 4A
- A peak of 8A
- Switchable output voltages of 6V/7.4V
- This ensures ample power supply to high-torque, high-voltage servos.
Data Logging for Performance Monitoring
-
The ESC features a built-in data logging function that tracks critical data such as minimum voltage, maximum current, RPM, ESC temperature, and motor temperature.
-
By connecting the ESC to the OTA Bluetooth module and the HW Link mobile app, users can monitor real-time data including throttle position, voltage, current, temperature, and RPM. The built-in memory in the OTA module allows data storage for post-race analysis through the app, enabling fine-tuning and detailed insights.
Note: Bluetooth effective range is approximately 5 meters.
Extensive Parameter Adjustments
The ESC offers 26 adjustable parameters, including PWM frequency, softening, initial throttle response, and Boost/Turbo timing. This provides precise control over power delivery, enhancing the driving experience with fine-tuned customization.
Dual application modes
Designed with two pre-set modes, 1/14th On-Road and 1/14th Off-Road, this ESC is ready to race out of the box.
Versatile Compatibility
While optimized for 1/14th Blinky and Boost racing, this ESC is also compatible with 1/10th Blinky competitions, offering flexibility across different racing formatsWhile optimized for 1/14th Blinky and Boost racing, this ESC is also compatible with 1/10th Blinky competitions, offering flexibility across different racing formats
