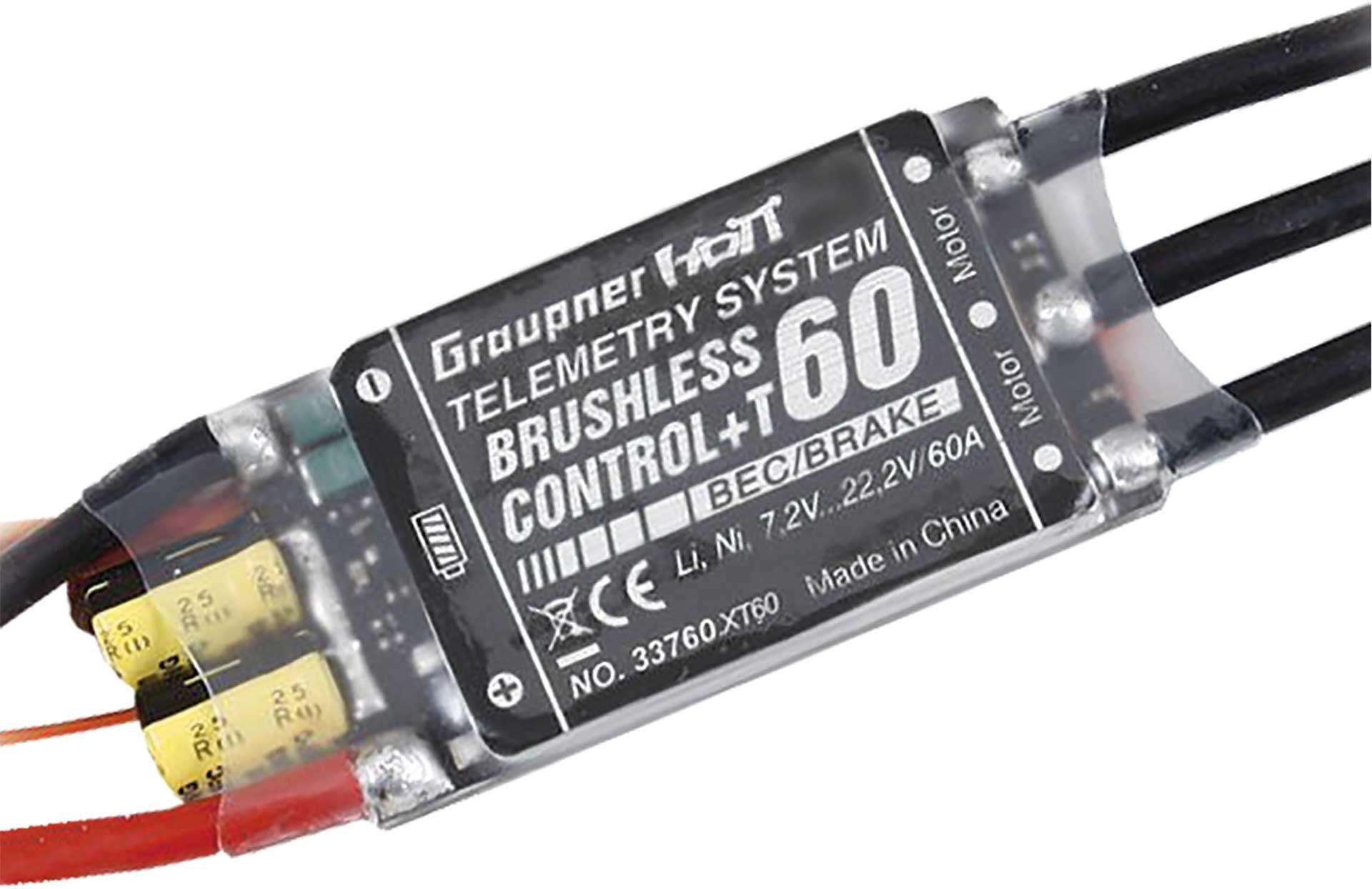

BRUSHLESS CONTROL+ T60 BEC

"Brushless Control+" programmable from the Hott transmitter.....

speed controller for brushless motors with internal HoTT telemetry functions:

Functions:

• Opto Coupler
• Easy programming of the transmitter paths
• Graupner HoTT-Telemetry for easy programming of the controller
• Graupner HoTT telemetry data and warnings for voltage, current, temperature, speed and capacity
• Programming and telemetry options:
• Battery type NiCd/NiMH/LiIo/LiPo/LiFe
• Down control voltage
• control type soft/hard
• direction of rotation
• Motor Timing
• startup time
• start torque
• Brake on/off
• Reverse mode for boot/auto on/off
• RPM control mode for helicopter on/off
• adjustment velocity in speed control mode
• number of poles of the motor
• gear reduction

telemetry warnings:

• Undervoltage limit
• maximum current
• minimum speed
• max. Temperature
• max. Capacity

telemetry display:

• current voltage
• current and maximum current
• current and maximum speed
• current and maximum temperature
• capacity
